Attention: The Google Chrome browser has a fault that won't let you download the RFA files. (Instead, right-click and select "SAVE AS"). This fault is only in the BIM section using Chrome. Please report any dead links to us.

Waterstop CAD Download

Click the waterstop type below to get started
Stacks Image 3577
6
TPV Waterstop — Earth Shield® Thermoplastic Vulcanizate Waterstop (TPV) (aka TPE-R), by J P Specialties, dramatically expands the scope of conventional waterstop by offering unmatched chemical resistance to a broad spectrum of aggressive chemicals, solvents, and hot petroleum oils. Manufactured NSF 61-certified, EPA-compliant waterstop profiles are available for new construction and retrofit.
PVC637 in Forms
PVC Waterstop — Earth Shield® Polyvinyl Chloride Waterstop (PVC) is the perfect solution for most water and wastewater applications. Earth Shield® PVC Waterstop is manufactured from prime virgin resin and is the trusted choice for environmentally engineered concrete structures. CRD C572-74 compliant and NSF 61 certified waterstop profiles for new and retrofit applications.
Stainless Steel Waterstop Fabrications
SS Waterstop — Earth Shield® Stainless Steel Waterstop can stop even the most corrosive fluids in their tracks, even at severely elevated temperatures. A variety of metals, grades, and gauges are available. Earth Shield® utilizes 20 gauge 316 low carbon as our standard alloy, which offers broad-spectrum corrosion resistance to most aggressive media, and is virtually untouched by the deleterious effects of ozone, making it an ideal choice for ozone contactor structures used in modern water treatment plants.
MCR Waterstop
MCR Waterstop — Type NB190® is a modern, hydrophilic chloroprene rubber waterstop with unmatched durability and water sealing capabilities. Manufactured NON-BENTONITE, modified chloroprene rubber, Type NB190® more than doubles its original size (400% in 36 days) when exposed to water. This expansion creates an effective compression seal within joints of limited to no movement. Type NB190® can expand and reexpand unlimited times with virtually no loss of physical properties. Additionally, Type NB190® has excellent resistance to many chemicals, is heat-resistant, and is NSF 61-certified safe for drinking water.

Waterstop CAD Download

Click the waterstop type below to get started
Stacks Image 3628
Stacks Image 3544
Ribbed Centerbulb Waterstop — The ribbed centerbulb waterstop is a highly versatile type of waterstop capable of accommodating lateral, transverse, and shear movement. It is used in expansion, construction, and control joints and offers excellent anchoring abilities and a long fluid-flow path due to the multiple ribs on the exterior flanges. Under stress, the numerous ribs on the waterstop will distort less than a dumbbell-type waterstop because the pressure is first applied to the inward-most anchoring rib and decreases to the subsequent ribs. This design allows for joint movement beyond the ultimate elongation of the material without distorting the anchoring ribs. Our ribbed centerbulb waterstops feature a sizeable outer diameter centerbulb. Combined with our elastomers' exceptional mechanical properties (ultimate elongation, tensile strength), they provide unsurpassed joint movement and sealing abilities.
Stacks Image 3547
Retrofit Waterstop — The retrofit waterstop creates a fluid-tight seal between existing and new concrete construction without labor-intensive and structurally destructive saw-cutting and grouting. It is perfect for constructing a new containment curb or wall next to or on an existing slab. We also offer unique profile fabrications for columns and pipe penetrations. Our retrofit waterstops are sold as complete systems and include all the necessary stainless steel bars and bolts. Additionally, we provide high-quality chemical-resistant novolac epoxy — VEN 250, VEN 500, or VEN 1000. Similar to all our thermoplastic waterstops, Earth Shield® retrofit waterstop can be heat-welded using a standard waterstop splicing iron, allowing for easy field fabrications and enabling the waterstop to function as a continuous, homogeneous, fluid-tight diaphragm.
Stacks Image 3550
Flat Strip Waterstop — A flat strip waterstop is ideal for limited movement construction and contraction (control) joints. Similar to all our thermoplastic waterstops, Earth Shield® flat strip waterstop can be heat-welded using a standard waterstop splicing iron, allowing for easy field fabrications and enabling the waterstop to function as a continuous, homogeneous, fluid-tight diaphragm.
Stacks Image 3553
EB Cap Waterstop — Integrated expansion board cap waterstop systems replace post-applied joint sealant and provide a fluid-tight internal seal like a traditional waterstop with a one-step, integrated unit. Install Earth Shield® expansion board cap waterstop on top of conventional expansion board filler or Earth Shield’s chemical-resistant, plastic expansion board. The expansion board acts as the form; therefore, no form splitting is necessary, significantly accelerating the project schedule and providing a long-lasting, attractive finished concrete joint. Like all our thermoplastic vulcanizate waterstops, Earth Shield® integrated cap system waterstop can be heat-welded using a standard waterstop splicing iron, allowing for easy field fabrications. Our EB Cap waterstop functions as a continuous, homogeneous, fluid-tight diaphragm.
Stacks Image 3556
Tear Web Waterstop — Earth Shield® tear web waterstops are for large joint movements such as tank foundations. For construction and contraction (control) joints, install a ribbed centerbulb instead. Earth Shield® tear web waterstop can be heat-welded using a standard waterstop splicing iron allowing for easy field fabrications and enabling the waterstop to function as a continuous, homogeneous, fluid-tight diaphragm.
Stacks Image 3559
Base Seal Waterstop — The Base Seal Waterstop is perfect for flat pavement jobs like runways and large containment slabs. It is the easiest waterstop to install. You lay the waterstop directly on the compacted subgrade, place and finish the concrete, and create control joints using a saw cut or another method. The base seal provides a permanent, life-of-structure seal at the bottom of the joint. It is suitable for construction, contraction (control), and expansion joints. For significant hydrostatic head pressures (>50 feet), a ribbed centerbulb should be used instead. Like all our thermoplastic waterstops, the Earth Shield® base seal waterstop can be heat-welded using a standard waterstop splicing iron, allowing for easy field fabrications and enabling the waterstop to function as a continuous, homogeneous, fluid-tight diaphragm.
Stacks Image 3562
Dumbbell Waterstop — Dumbbell waterstops are most commonly installed in below-grade applications with limited movement. Dumbbell waterstops work well in construction and contraction (control) joints, while dumbbell centerbulbs can accommodate construction, control, and expansion joints. The large centerbulb (1-1/2” outer diameter) on the JP949 (and JP1149) waterstop profile, along with the excellent mechanical properties of our thermoplastic elastomers and large endbulb anchors, enable the product to withstand significant joint movements such as seismic activity or settlement. Most of our dumbbell waterstops are 3/8” thick, making them the largest and thickest profiles available in the industry. Like all our thermoplastic waterstops, Earth Shield® dumbbell waterstops can be heat-welded using a standard waterstop splicing iron for easy field fabrications and enables the waterstop to function as a continuous, homogeneous, fluid-tight diaphragm.
Stacks Image 3565
Column and Pipe Fitting Waterstop — Earth Shield® Column & Pipe Fitting (part no. JP320LC1.XX* [*XX is the diameter in inches]) is made with a flexible, chemical-resistant polymer and stainless steel anchoring hardware. It can be quickly installed by a single laborer on the job site. To install, apply an epoxy gel bed to the existing surface, place the polymer ring into the epoxy gel bed, heat weld the single opening on the polymer ring using a waterstop splicing iron, and finally, complete the system with the stainless steel closure ring. The Earth Shield® system acts as an internal dam within the cast concrete, stopping aggressive chemicals, solvents, and hot petroleum oils from penetrating the joint.


TPV Waterstop

Waterstops for Chemical, Industrial, & Environmental Applications

Earth Shield TPV (thermoplastic vulcanizate) (aka TPE-R) Waterstop is the world's leading chemical resistant waterstop, with renowned physical properties and broad-spectrum resistance to hazmat, deleterious fluids, and concentrated ozone. NSF 61 certified and GreenSpec listed. EPA-compliant waterstop profiles are available for new construction and retrofit and the necessary tools and accessories for proper installation.

Stacks Image 3
JP158 — An ideal alternative to standard sealant over a metal keyway.
Stacks Image 3
JP159 — 3/4" expansion board minicamp sealant waterstop. Ideal for flat slab applications.
Stacks Image 3

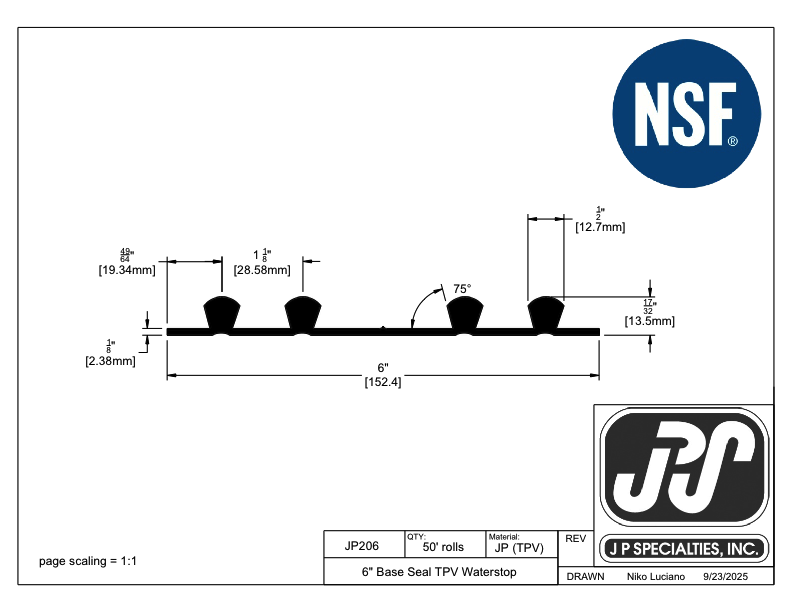

JP206 — 6" baseseal waterstop, ideal for flat slab work. Contraction and construction joints.
Stacks Image 3

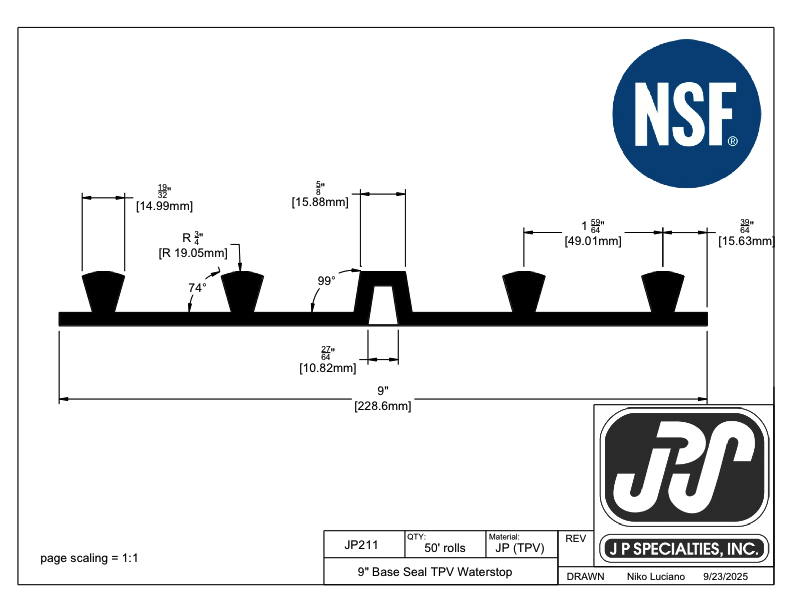

JP211 — 9" baseseal waterstop, ideal for flat slab work. Contraction, construction, and expansion joints.
Stacks Image 3
JP215— Corner seal waterstop, ideal for flat slab work. Construction and expansion joints. Integrates with JP211 base seal.
Stacks Image 3
JP216L — L-shaped retrofit base seal waterstop. Used for joining new to existing concrete.
Stacks Image 3

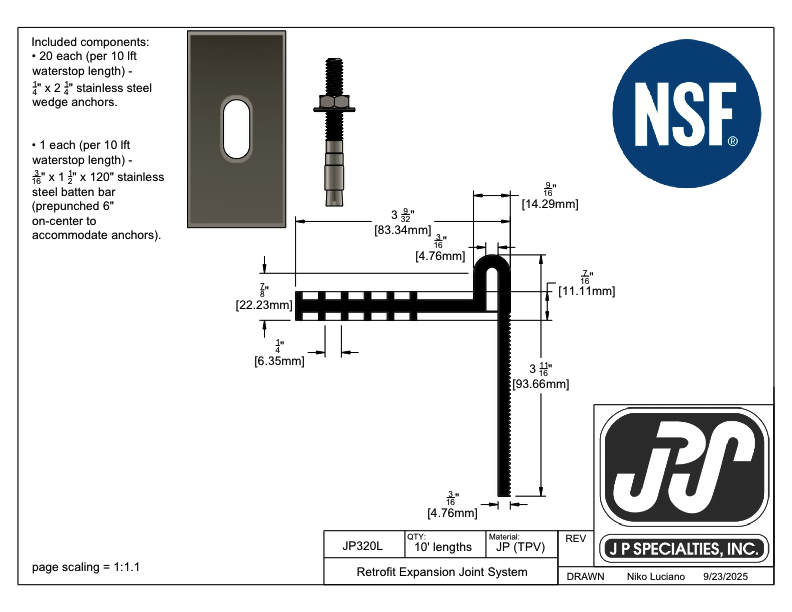

JP320L — L-shaped retrofit waterstop. Used for joining new to existing concrete, especially in moving joints.
Stacks Image 3
JP325T — Small T-shaped retrofit. Used for joining new to existing concrete. A great choice for containment curbs on slabs.
Stacks Image 3

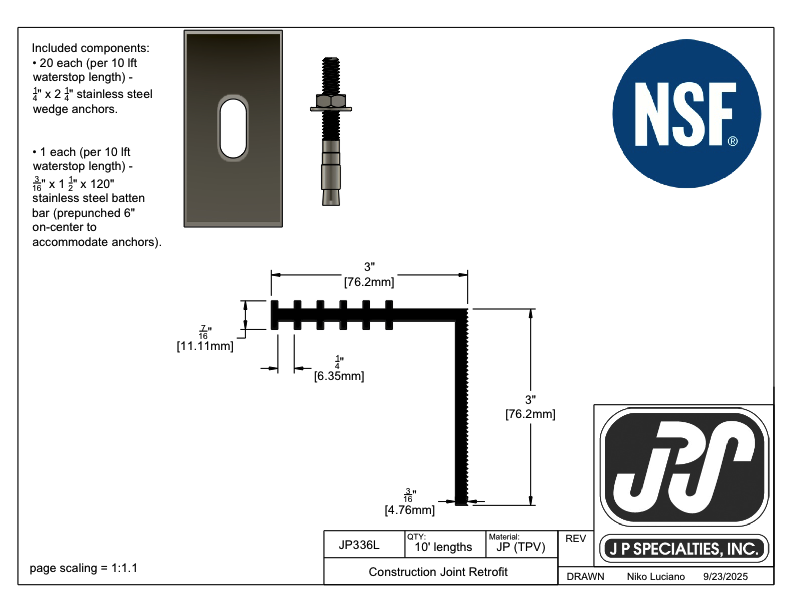

JP336L — Small L-shaped retrofit waterstop for non-moving construction joints. Often, the preferred choice for containment curbs on slabs.
Stacks Image 3

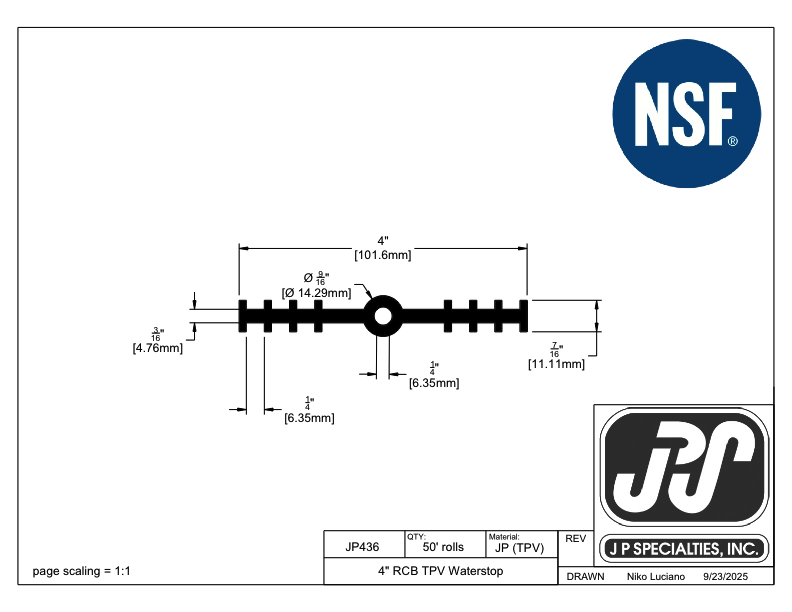

JP436 — 4" ribbed centerbulb waterstop. Contraction, construction, and expansion joints.
Stacks Image 3
JP443— 4" dumbbell waterstop. Contraction and construction joints.
Stacks Image 3

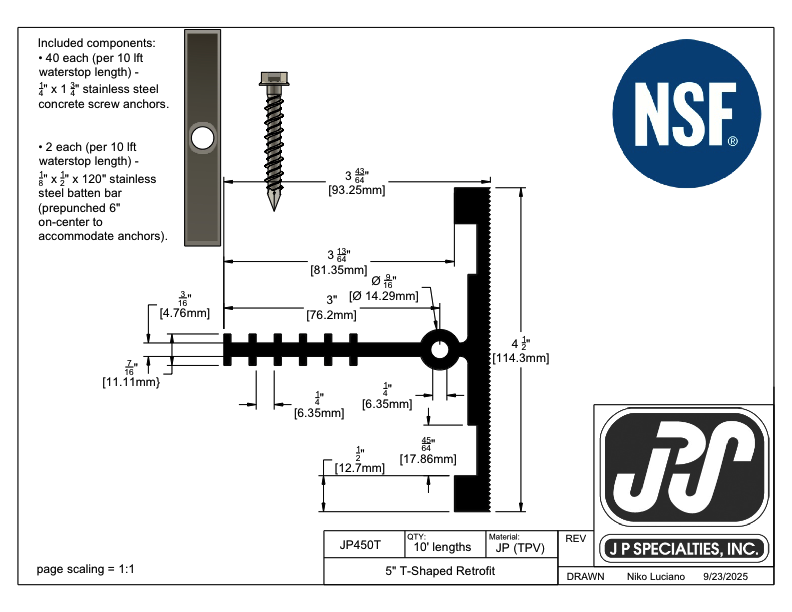

JP450T — Large T-shaped retrofit. Used for joining new to existing concrete. Interfaces well with JP EBCap profiles and our screed key waterstop profile JP1225.
Stacks Image 3
JP500 — Externally applied joint retrofit. Works well with JP540L at the perimeter joints.
Stacks Image 3
JP540L — 4.5" externally applied corner retrofit waterstop. Works well JP500 for flat joints.
Stacks Image 3642
JP568T — T-shaped tear web retrofit. Used for joining new to existing concrete.
Stacks Image 3
JP621L — Retrofit waterstop designed for very large joint movements (especially shear). Interfaces best with JP211 and/or JP936.
Stacks Image 3

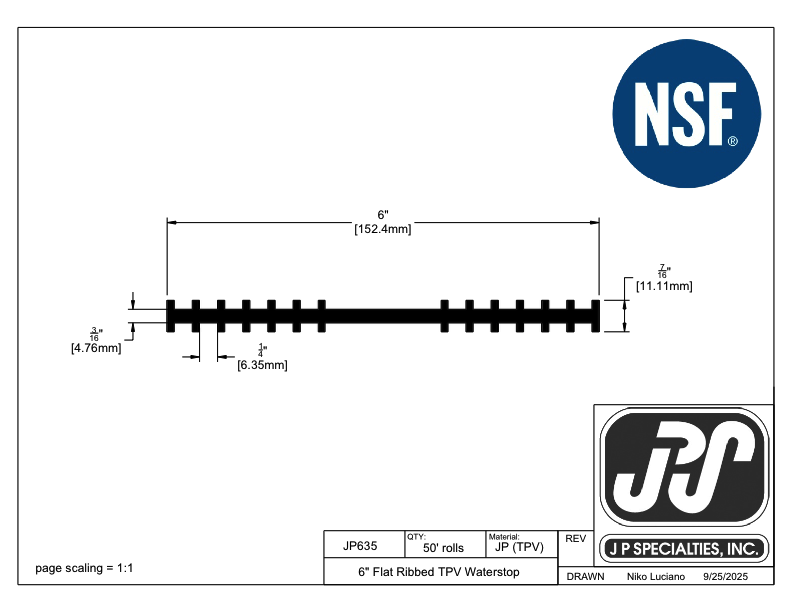

JP635 — 6" ribbed flat strip waterstop.
Stacks Image 3

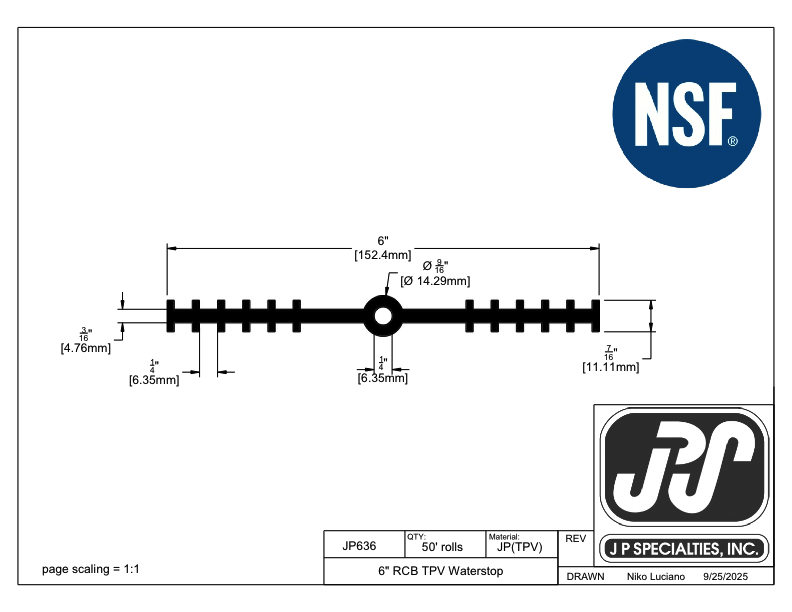

JP636 — 6" ribbed centerbulb waterstop. The absolute industry standard. Contraction, construction, and expansion joints.
Stacks Image 3
JP637 — 6" ribbed flat strip waterstop.
Stacks Image 3

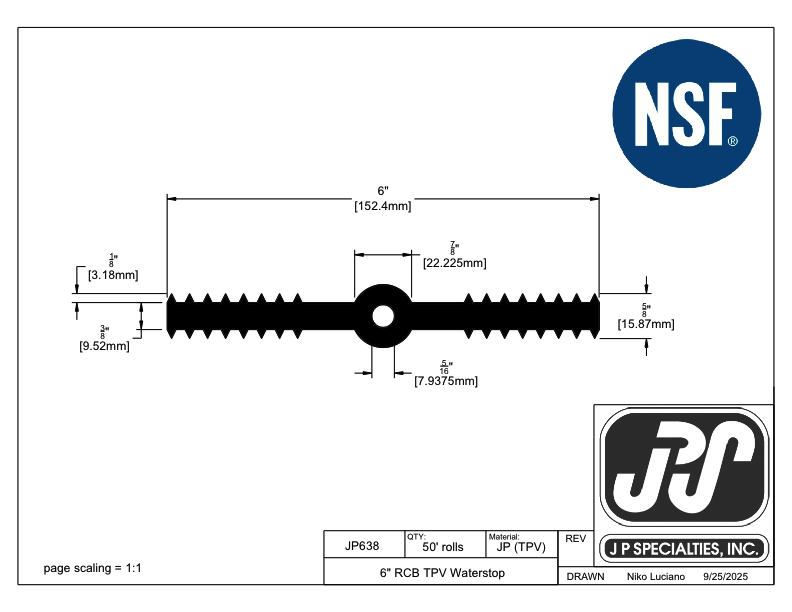

JP638 — 6" ribbed centerbulb waterstop. The absolute industry standard. Contraction, construction, and expansion joints.
Stacks Image 3

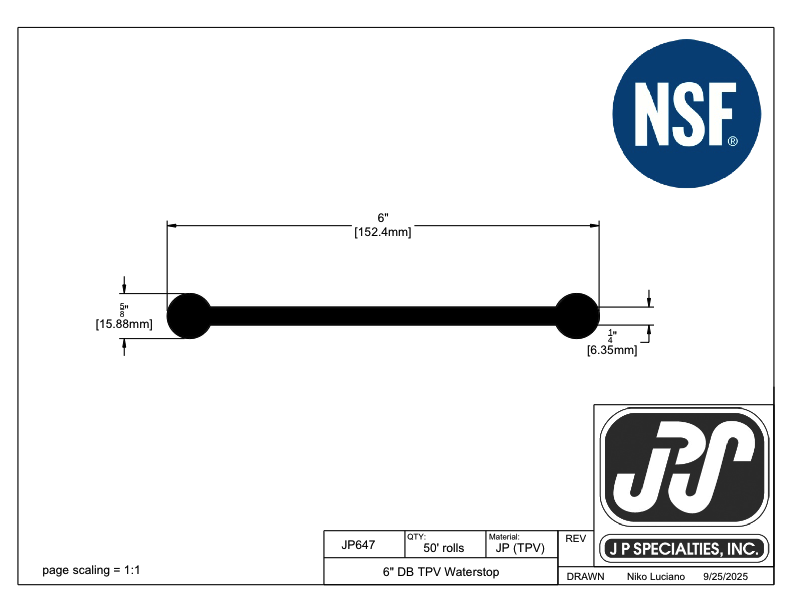

JP647 — Thin 6" dumbbell waterstop. Contraction and construction joints.
Stacks Image 3
JP648 — Thick 6" dumbbell waterstop. Contraction and construction joints.
Stacks Image 3
JP678 — 6" tear web waterstop. Designed for movement (especially shear). Contraction, construction, and expansion joints.
Stacks Image 3
JP936 — 9" ribbed centerbulb waterstop. The absolute industry standard for high head pressure rating. Contraction, construction, and expansion joints.
Stacks Image 3
JP937— 9" ribbed flat strip waterstop. The absolute industry standard for high head pressure rating. Contraction and construction joints.
Stacks Image 3
JP938 — 9" ribbed centerbulb waterstop. The absolute industry standard for high head pressure rating. Contraction, construction, and expansion joints.
Stacks Image 3

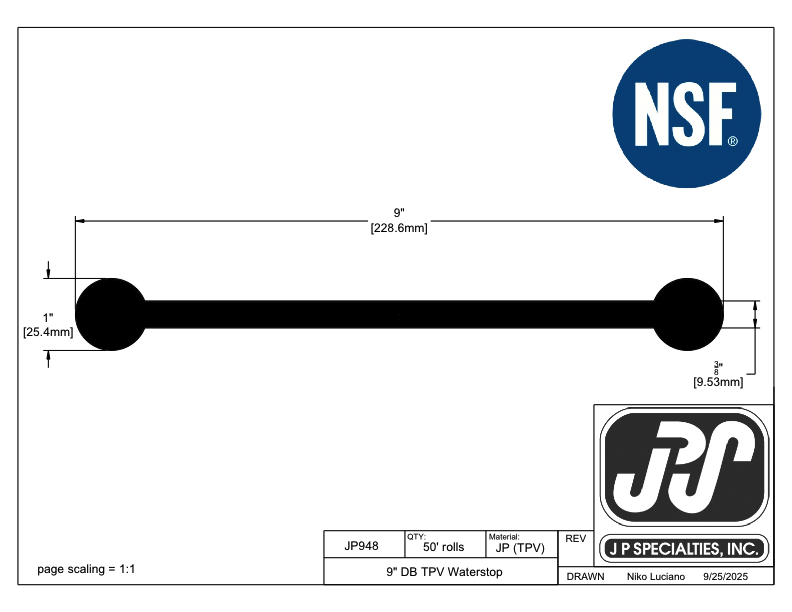

JP948 — Thick 9" dumbbell waterstop. Contraction and construction joints.
Stacks Image 3

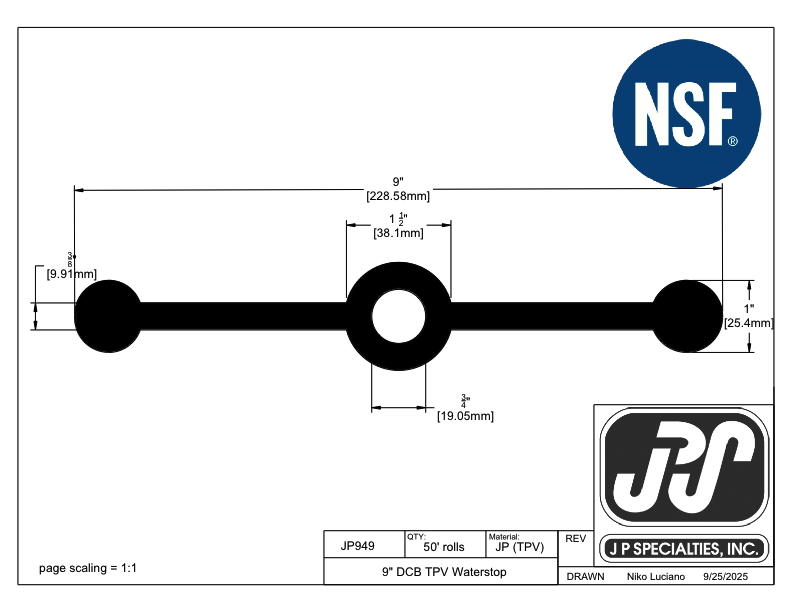

JP949 — Thick 9" dumbbell centerbulb waterstop. Expansion, contraction, and construction joints.
Stacks Image 3
JP978 — 9" tear web waterstop. Designed for movement (especially shear). Contraction, construction, and expansion joints.
Stacks Image 3

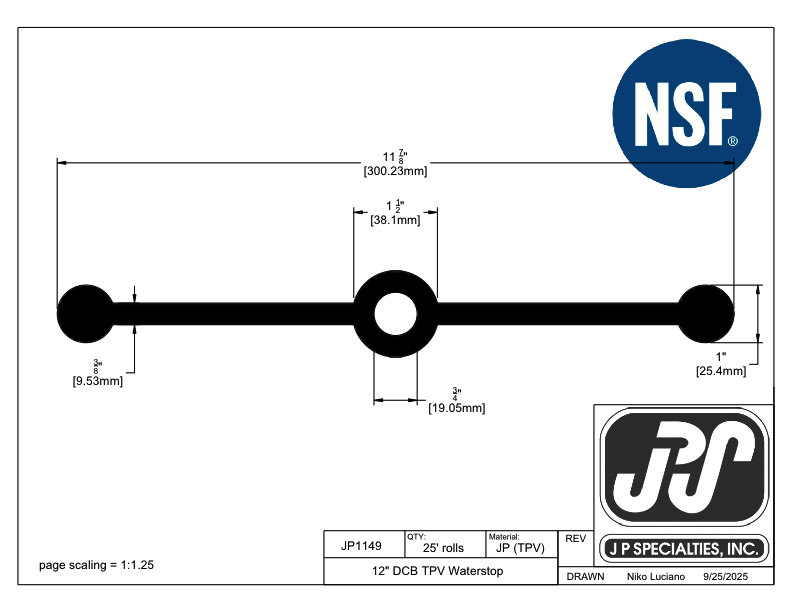

JP1149 — Thick and wide 12" dumbbell centerbulb waterstop. Expansion, contraction, and construction joints. 12" waterstops are designed for huge head pressures.
Stacks Image 3
JP1225 — A combined sealant and waterstop over a metal keyway.
Stacks Image 3
JPEB350 — 1/2" expansion board sealant waterstop. Ideal for flat slab applications.
Stacks Image 3

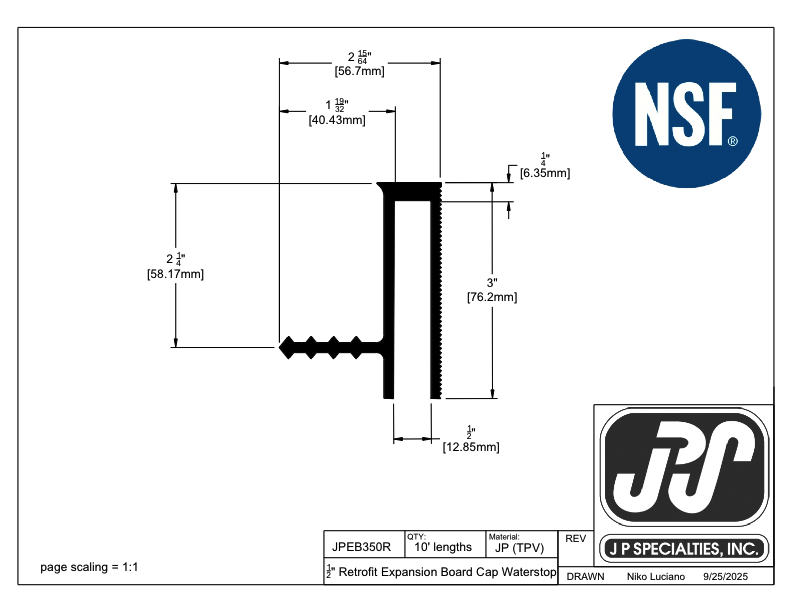

JPEB350R — ½" retrofit expansion board sealant waterstop. Ideal for flat slab applications. Used for joining new to existing concrete.
Stacks Image 3

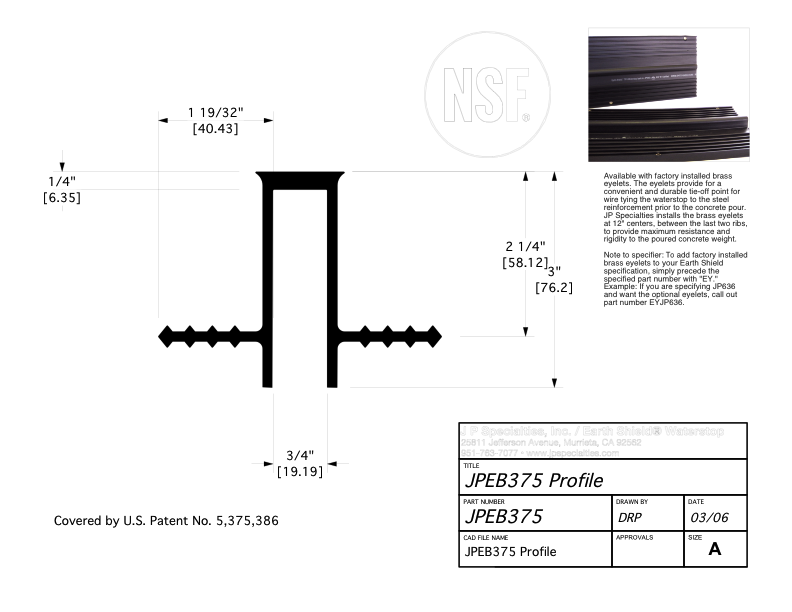

JPEB375 — 3/4" expansion board sealant waterstop. Ideal for flat slab applications.
Stacks Image 3
JPEB375R — 3/4" retrofit expansion board sealant waterstop. Ideal for flat slab applications. Used for joining new to existing concrete.
Stacks Image 3
JPEB380R — Integrated Cap Retrofit Waterstop. An ideal alternative to standard sealant over ½" expansion joint fillers.
Stacks Image 3
JPEB385R — Integrated Cap Retrofit Waterstop. An ideal alternative to standard sealant over ¾" expansion joint fillers.


PVC Waterstop

Waterstops for water and wastewater

PVC (polyvinyl chloride) Waterstop for concrete joints. CRD C572-74 compliant and NSF 61 certified. Earth Shield Polyvinyl Chloride Waterstop (PVC) is the perfect solution for most water and wastewater applications. Earth Shield PVC Waterstop is manufactured from prime virgin resin and is the trusted choice for environmental engineered concrete structures. Waterstop profiles for new and retrofit applications.

Stacks Image 3

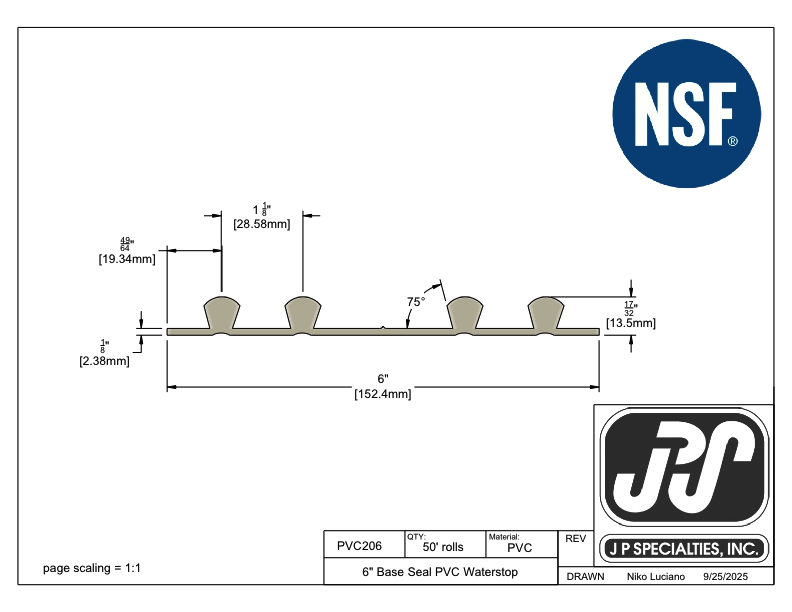

PVC206 — 6" baseseal waterstop, ideal for flat slab work. Contraction and construction joints.
Stacks Image 3
PVC209 — 6" baseseal crack-inducer waterstop, ideal for flat slab work. Designed for contraction joints.
Stacks Image 3
PVC211 — TX DOT Type A — 9" baseseal waterstop, ideal for flat slab work. Contraction, construction, and expansion joints.
Stacks Image 3
PVC213 — 9" baseseal waterstop, ideal for flat slab work. Contraction and construction joints.
Stacks Image 3
PVC320L — L-shaped retrofit waterstop. Used for joining new to existing concrete, especially in moving joints.
Stacks Image 3
PVC325T — Small T-shaped retrofit. Used for joining new to existing concrete. Great choice for containment curbs on slabs.
Stacks Image 3
PVC336L — Small L-shaped retrofit waterstop for non-moving construction joints. Often, the preferred choice for containment curbs on slabs.
Stacks Image 3
PVC399T — Heavy-duty 6" T-shaped retrofit. Used for joining new to existing concrete.
Stacks Image 3
PVC401 — 4" ribbed centerbulb taper waterstop. Contraction, construction, and expansion joints.
Stacks Image 3
PVC402 — 4" ribbed flat strip taper waterstop. Contraction and construction joints.
Stacks Image 3
PVC403 — 4" split ribbed centerbulb waterstop. Installed in straight runs only.
Stacks Image 3
PVC436 — 4" ribbed centerbulb waterstop. Contraction, construction, and expansion joints.
Stacks Image 3
PVC438 — 4" heavy-duty ribbed centerbulb waterstop. Contraction, construction, and expansion joints.
Stacks Image 3
PVC443— 4" dumbbell waterstop. Contraction and construction joints.
Stacks Image 3
PVC450T — Large T-shaped retrofit. Used for joining new to existing concrete.
Stacks Image 3
PVC601 — 6" ribbed centerbulb taper waterstop. Contraction, construction, and expansion joints.
Stacks Image 3
PVC603 — 6" ribbed flat strip taper waterstop. Contraction and construction joints.
Stacks Image 3

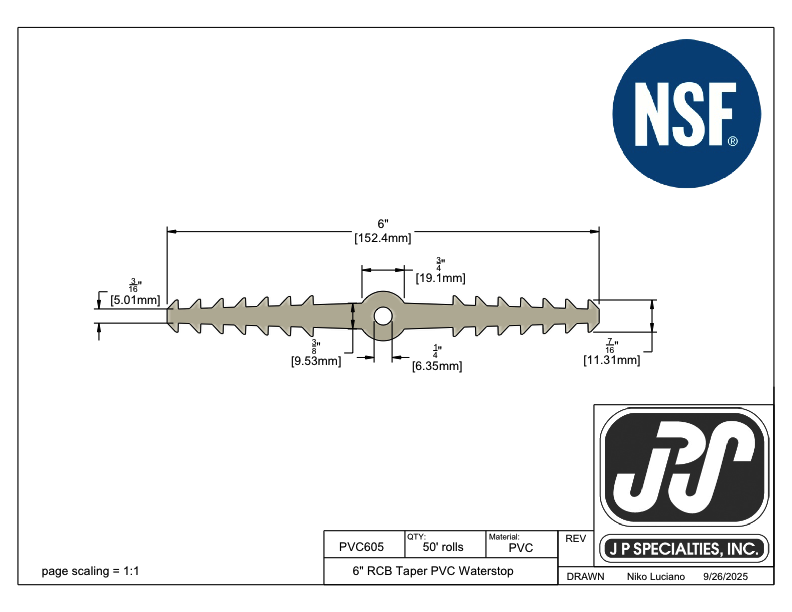

PVC605 — 6" ribbed centerbulb tapered waterstop. Contraction, construction, and expansion joints.
Stacks Image 3
PVC610 — 6" ribbed centerbulb tapered waterstop. Contraction, construction, and expansion joints.
Stacks Image 3
PVC621L — Retrofit waterstop designed for large joint movements (especially shear). Interfaces best with PVC211 and/or PVC936.
Stacks Image 3
PVC635 — 6" ribbed flat strip waterstop. Contraction and construction joints.
Stacks Image 3
PVC636 — 6" ribbed centerbulb waterstop. Contraction, construction, and expansion joints.
Stacks Image 3
PVC637 — 6" ribbed flat strip waterstop. Contraction and construction joints.
Stacks Image 3

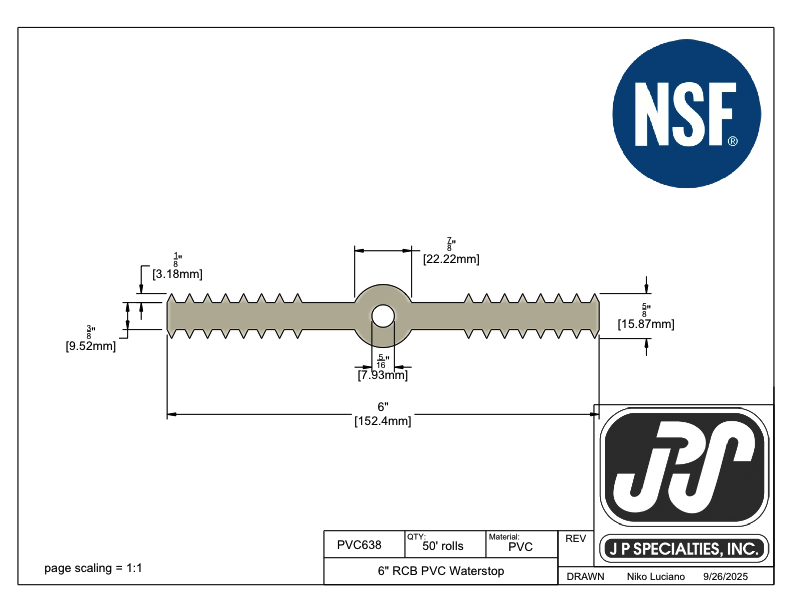

PVC638 — 6" heavy-duty ribbed centerbulb waterstop. The absolute industry standard. Contraction, construction, and expansion joints.
Stacks Image 3
PVC644 — 6" Ontario Hydro ribbed centerbulb waterstop. Contraction, construction, and expansion joints.
Stacks Image 3
PVC647 — Thin 6" dumbbell waterstop. Contraction and construction joints.
Stacks Image 3
PVC648 — Thick 6" dumbbell waterstop. Contraction and construction joints.
Stacks Image 4

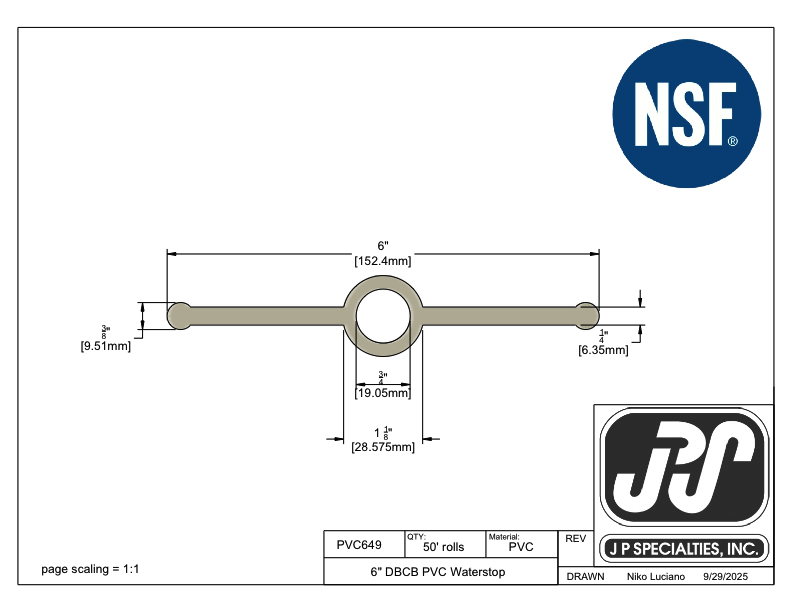

PVC649 — Thin 6" dumbbell centerbulb waterstop. Expansion, contraction, and construction joints.
Stacks Image 3
PVC678 — 6" tear web waterstop. Designed for movement (especially shear). Contraction, construction, and expansion joints.
Stacks Image 3

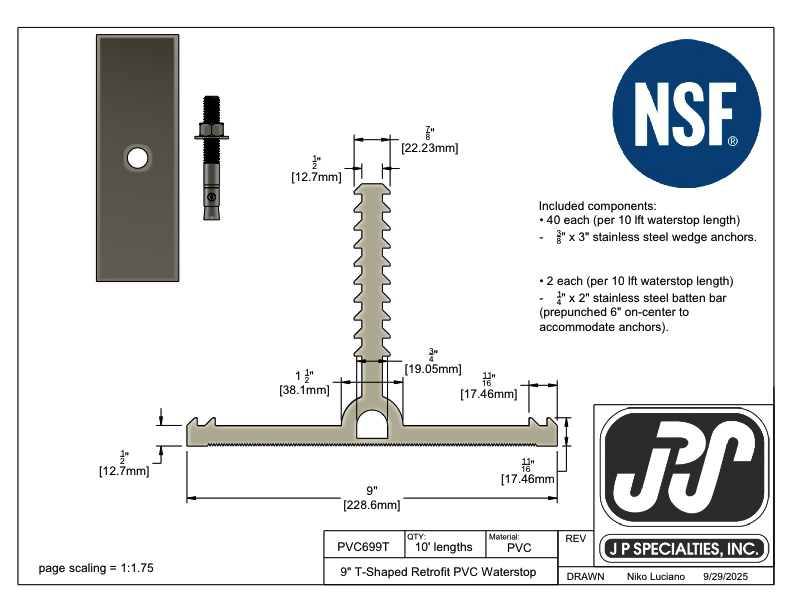

PVC699T — Heavy-duty 9" T-shaped retrofit. Used for joining new to existing concrete.
Stacks Image 3
PVC701 — CalTrans W-1/2. Ideal waterstop for California D.O.T. projects. Usually installed in expansion joints.
Stacks Image 3
PVC702 — 4" multi-ribbed labyrinth waterstop. Ideal for construction joints.
Stacks Image 3
PVC703 — 6" split ribbed centerbulb waterstop. Installed in straight runs only.
Stacks Image 3

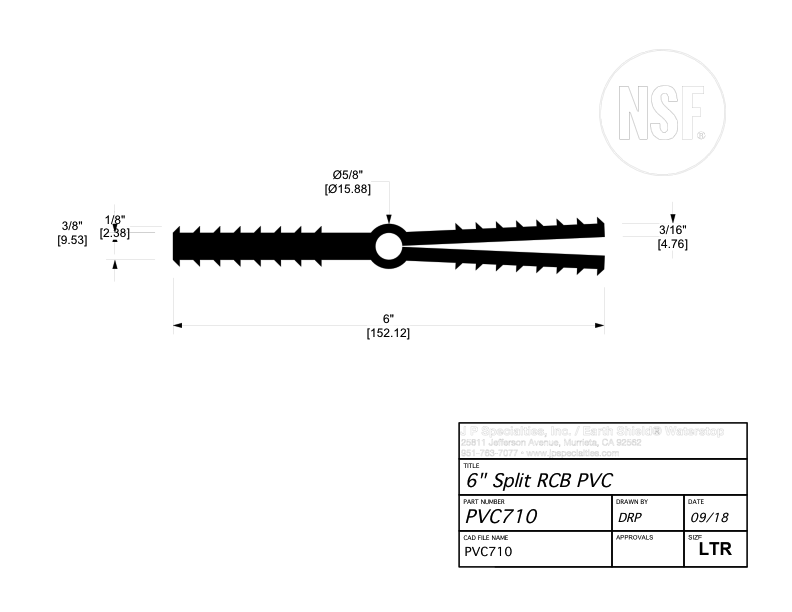

PVC710 — 6" heavy-duty split ribbed centerbulb waterstop. Installed in straight runs only.
Stacks Image 3
PVC905 — 9" ribbed centerbulb tapered waterstop. Contraction, construction, and expansion joints.
Stacks Image 4
PVC927 — 9" heavy-duty split ribbed centerbulb waterstop. Installed in straight runs only.
Stacks Image 3
PVC936 — 9" ribbed centerbulb waterstop. Contraction, construction, and expansion joints.
Stacks Image 3
PVC937— 9" ribbed flat strip waterstop. The absolute industry standard for high head pressure rating. Contraction and construction joints.
Stacks Image 3

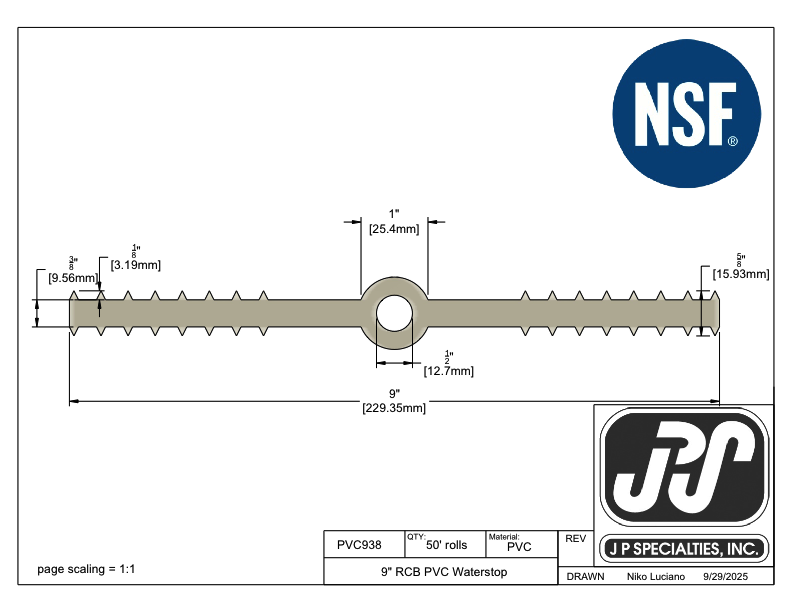

PVC938 — 9" ribbed centerbulb waterstop. The absolute industry standard for high head pressure rating. Contraction, construction, and expansion joints.
Stacks Image 3
PVC940 — 9" ribbed large centerbulb waterstop. Contraction, construction, and expansion joints.
Stacks Image 4

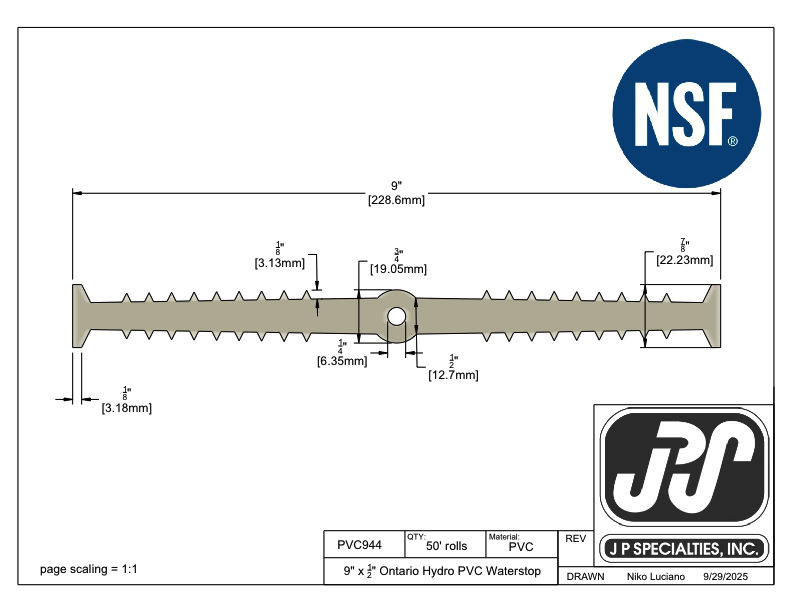

PVC944 — 9" Ontario Hydro centerbulb waterstop. Contraction, construction, and expansion joints.
Stacks Image 3

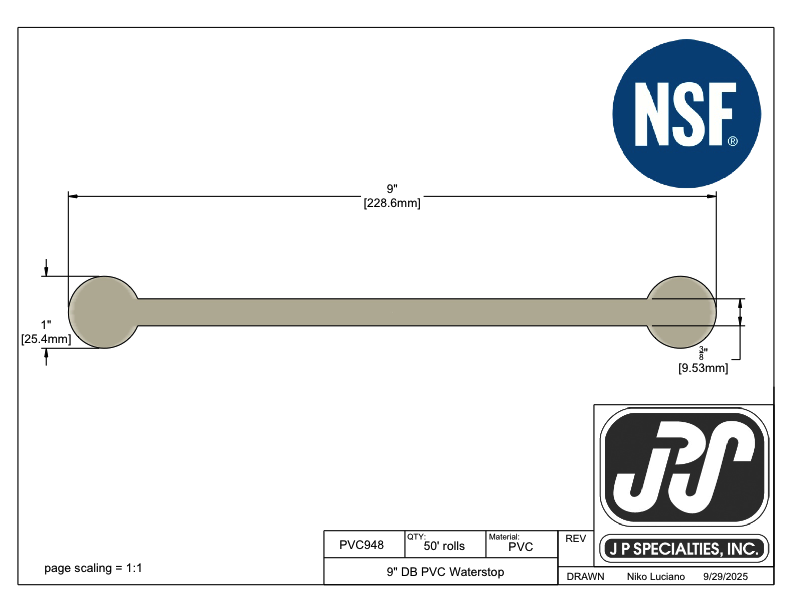

PVC948 — Thick 9" dumbbell waterstop. Contraction and construction joints.
Stacks Image 3
PVC949 — Thick 9" dumbbell centerbulb waterstop. Expansion, contraction, and construction joints.
Stacks Image 3
PVC978 — 9" tear web waterstop. Designed for movement (especially shear). Contraction, construction, and expansion joints.
Stacks Image 3
PVC1149 — Thick and wide 12" dumbbell centerbulb waterstop. Expansion, contraction, and construction joints. 12" waterstops are designed for huge head pressures.
Stacks Image 4

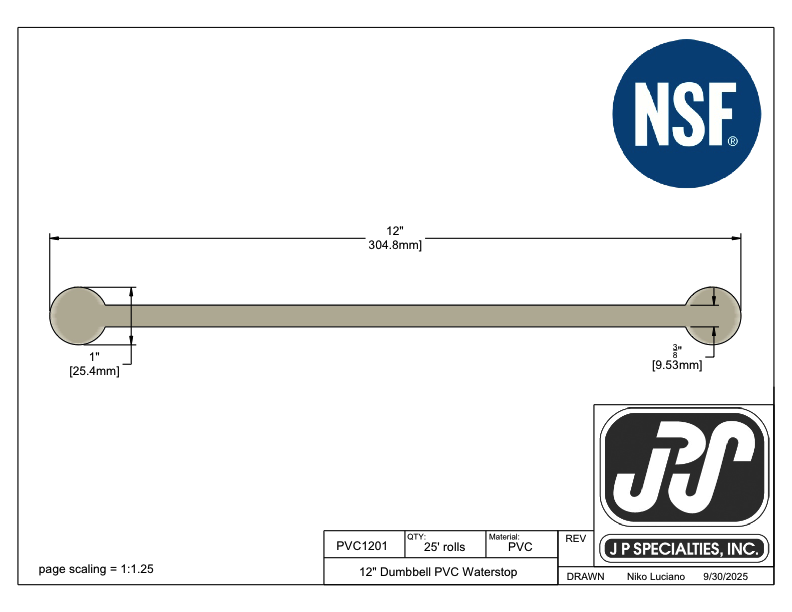

PVC1201 — Thick 12" dumbbell waterstop. Contraction and construction joints. 12" waterstops are designed for huge head pressures.
Stacks Image 3
PVC Caps — PVC158 — PVC1225 — An ideal alternative to standard sealant over a metal keyway.
Stacks Image 3
PVC Mini Caps — PVC159 — An ideal alternative to standard sealant over ¾" expansion joint fillers.
Stacks Image 3
PVC Mini Caps Retrofit — PVC159R — An ideal alternative to standard sealant over ¾" expansion joint fillers.
Stacks Image 3
PVC Mini Caps — PVC160 — An ideal alternative to standard sealant over ½" expansion joint fillers.
Stacks Image 3
PVC Expansion Board Caps — PVCEB350 — Integrated Cap Waterstop. An ideal alternative to standard sealant over ½" expansion joint fillers.
Stacks Image 3
PVC Expansion Board Caps Retrofit — PVCEB350R — Integrated Cap Retrofit Waterstop. An ideal alternative to standard sealant over ½" expansion joint fillers.
Stacks Image 3
PVC Expansion Board Caps — PVCEB375 — Integrated Cap Waterstop. An ideal alternative to standard sealant over ¾" expansion joint fillers.
Stacks Image 3
PVC Expansion Board Caps Retrofit — PVCEB375R — Integrated Cap Retrofit Waterstop. An ideal alternative to standard sealant over ¾" expansion joint fillers.
Stacks Image 3
PVC Expansion Board Caps Retrofit — PVCEB380R — Integrated Cap Retrofit Waterstop. An ideal alternative to standard sealant over ½" expansion joint fillers.
Stacks Image 3
PVC Expansion Board Caps Retrofit — PVCEB385R — Integrated Cap Retrofit Waterstop. An ideal alternative to standard sealant over ¾" expansion joint fillers.


Stainless Steel Waterstop

Waterstops for extreme chemical resistance and high heat applications

Earth Shield Stainless Steel Waterstop is used in applications requiring extreme heat or cold resistance, as well as the ultimate protection from high concentrations of ozone or hazardous aqueous chemicals.

Stacks Image 3
JP275 — 275 mm stainless steel waterstop.
Stacks Image 3
JP358 — 4" stainless steel waterstop.
Stacks Image 3
JP358R — 4" stainless steel retrofit waterstop. Used for joining new to existing construction.
Stacks Image 3
JP511 — 11" large movement stainless steel waterstop
Stacks Image 3656
JP558 — 6" stainless steel waterstop.
Stacks Image 3
JP558R — 6" stainless steel retrofit waterstop. Used for joining new to existing construction.
Stacks Image 3
JP578 — Large movement stainless steel waterstop.
Stacks Image 3
JP578R — Large movement stainless steel retrofit waterstop. Used for joining new to existing construction.
Stacks Image 3
JP858 — 9" stainless steel waterstop.
Stacks Image 3
JP858R — 9" stainless steel retrofit waterstop. Used for joining new to existing construction.
Stacks Image 3
JP1121 — 12" base seal stainless steel waterstop
Stacks Image 3
JP1122 — 12" base seal stainless steel waterstop.
Stacks Image 3
JP1122R — 12" base seal retrofit stainless steel waterstop.
Stacks Image 3
JP1158 — 12" stainless steel waterstop.
Stacks Image 3
JP10250 — 250 mm stainless steel waterstop.


Hydrophilic and Mastic Waterstop

Waterstops for Construction Joints

Earth Shield Hydrophilic and Mastic Strip Applied Waterstops are the simple solution for construction joints.

Stacks Image 826
